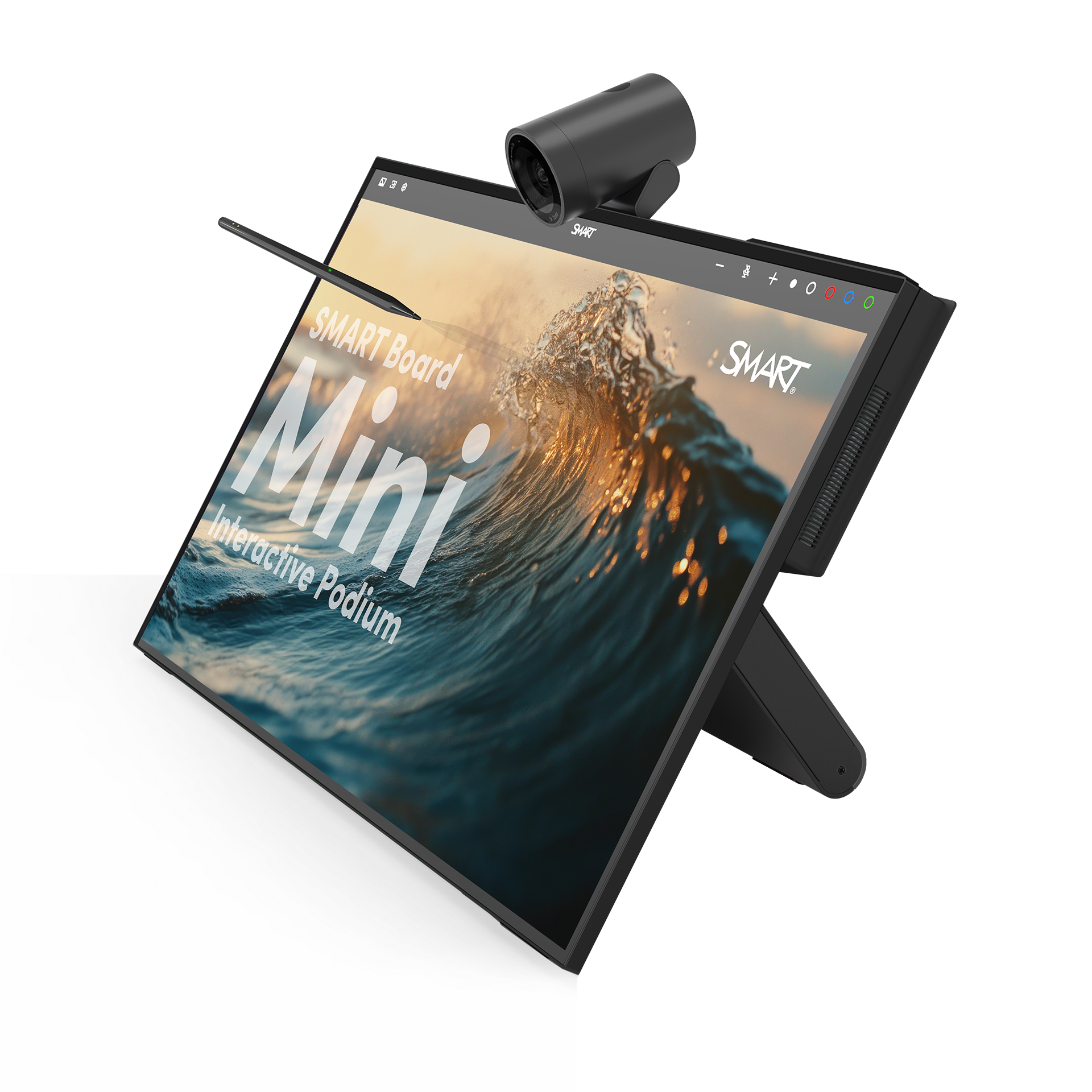

SMART Board Mini 727 interactive podium specifications

Screen size (diagonal)

27"

Backlight

LED

Aspect ratio

16:9

Maximum display resolution

4K UHD (3840 × 2160)

Refresh rate

60 Hz

Brightness

500 cd/m²

Glass

  • Optically bonded
  • Anti-glare
  • Anti-fingerprint

Display response time

14 ms

Viewing angle

178°

Frame color

Black

Sensors

Ambient light

Audio

Integrated enhanced 6 W speakers (×2)

Integrated eight-microphone array with built-in acoustic echo cancellation

Touch technology

PCAP

Touch features

Palm rejection

Minimum object size

≥1.5 mm

Multi-touch capability

10 points

Tools included

Stylus

Tool holders

Magnetic holder, left and right

Stylus technology

Microsoft Pen Protocol (MPP 2.0)

Stylus type

  • Active

Pressure sensitivity

4096 levels of pressure

Button

Mouse right-click function

Fine eraser

Yes

Indicator light

  • Charging
  • Status

Material

Black aluminum

Charging

In-bezel charging

Resolution

4K UHD (3840 × 2160)

Frame rate

30 Hz @ 4K resolution

Field of view

118°

Aspect ratio

16:9

Tilt range

-16–90°

Auto-focus

Yes

Auto-framing

Yes (user-controllable)

Digital zoom

5× ePTZ

Privacy shutter

Integrated privacy shutter

SMART OPS Modules

SMART PCM modules or AM60 appliance

OPS power

65 W

More information

Seesmarttech.com/accessories

Type

Side

OPS PC accessory slot

1

HDMI 2.1 4K @ 60 Hz with HDCP 1.4 and HDCP 2.3

1

USB Type-C 4K @ 60 Hz Display Port 1.4a, HDCP 2.3, USB 2.0 (UFP) for touch and audio, USB 3.0 (DFP) for peripherals, 65 W power delivery

1

USB 3.0 Type-A

2

USB 3.0 Type-B for touch ingest and peripherals

1

RJ45 (LAN IN)

1

Type

Side

HDMI 2.1 4K @ 60 Hz with HDCP 1.4 and HDCP 2.3

1

USB Type-C 4K @ 60 Hz Display Port 1.4a, HDCP 2.3 and HDCP 1.3, USB 2.0 (UFP) for audio, USB 2.0 (DFP) for touch ingest and peripherals

1

Stereo 3.5 mm (variable)

1

Type

Qty

Power adapter with country-specific cable

1

10' (3 m) USB 2.0 Type-A-to-B cable

1

6' (1.8 m) USB Type-C

1

VESA mounting plate

1

VESA plate mounting screws

2

Stylus with fine eraser and tether

1

Replacement nibs

4

4K camera

1

Camera security screws

2

Remote control

1

AAA batteries

2

Illustrated installation instructions

1

Important information document

1

Wired

RJ45 (×1), 1000BASE-T, pass-through

Power requirements

100V to 240V AC, 50 Hz to 60 Hz

Operating temperature

41–95°F (5–35°C)

Storage temperature

-4–140°F (-20–60°C)

Humidity

20–90% relative humidity, non-condensing

Typical

< 50 W

Standby

< 0.5 W

Security feature

Kensington Security Slot

Regulatory models

SP7-1

US / Canada

  • cULus
  • FCC
  • ISED
  • TSCA
  • CONEG Packaging
  • Proposition 65

EU / EEA / EFTA / UK

  • CE
  • LVD
  • CB
  • EMCD
  • REACH
  • RoHS
  • Battery
  • WEEE
  • Packaging
  • POP
  • Ecodesign

Australia / New Zealand

  • RCM

Performance standards

  • ENERGY STAR
  • HDMI
  • HDCP

Energy label

Seeeprel.ec.europa.eu/qr/2379427

SIP-727

SMART Board Mini 727 interactive podium

SIP-727-PCMi5

SMART Board Mini 727 interactive podium with OPS PC, PCMi5 with SMART Meeting Pro- bundle

SIP-727-PCMi7

SMART Board Mini 727 interactive podium with OPS PC, PCMi7v with SMART Meeting Pro - bundle

SIP-727-AM60

SMART Board Mini 727 interactive podium with iQ appliance, AM60 - bundle

Other accessories

See smarttech.com/accessories

Note

Order numbers may vary by region.



Terms and conditions and warranty upgrade options vary by region. Visit smarttech.com/warranty or contact your reseller for information.

Notes

  • All dimensions ± 0.3 cm. All weights ± 0.9 kg.

  • Product ships upright.

  • Leave space around the display to ensure adequate ventilation

Dimensions

Weight

13 1/2 lb. (6.1 kg)

Shipping dimensions (not including pallet)

29 5/8" × 19 3/16" × 6 1/8"

(75.3 cm × 48.8 cm × 15.6 cm)

Shipping weight

23 5/16 lb. (10.5 kg)

VESA mount

M4 | 75 × 75 mm

M4 | 100 × 100 mm
