SMART Board M685E specifications

SMART Board 685E interactive whiteboard

Your SMART Board M685E interactive whiteboard features a durable interactive surface, two damage-resistant pens and SMART’s proprietary DViT (Digital Vision Touch) technology. The SBM685E model supports dual touch, dual write and intuitive gestures, such as toss, rotate and zoom, available with multitouch operating systems.

The SBM685E interactive whiteboard includes hardware to integrate with compatible Epson projectors:

  • PowerLite 585W for SMART

  • PowerLite 685W for SMART (V11H744620)

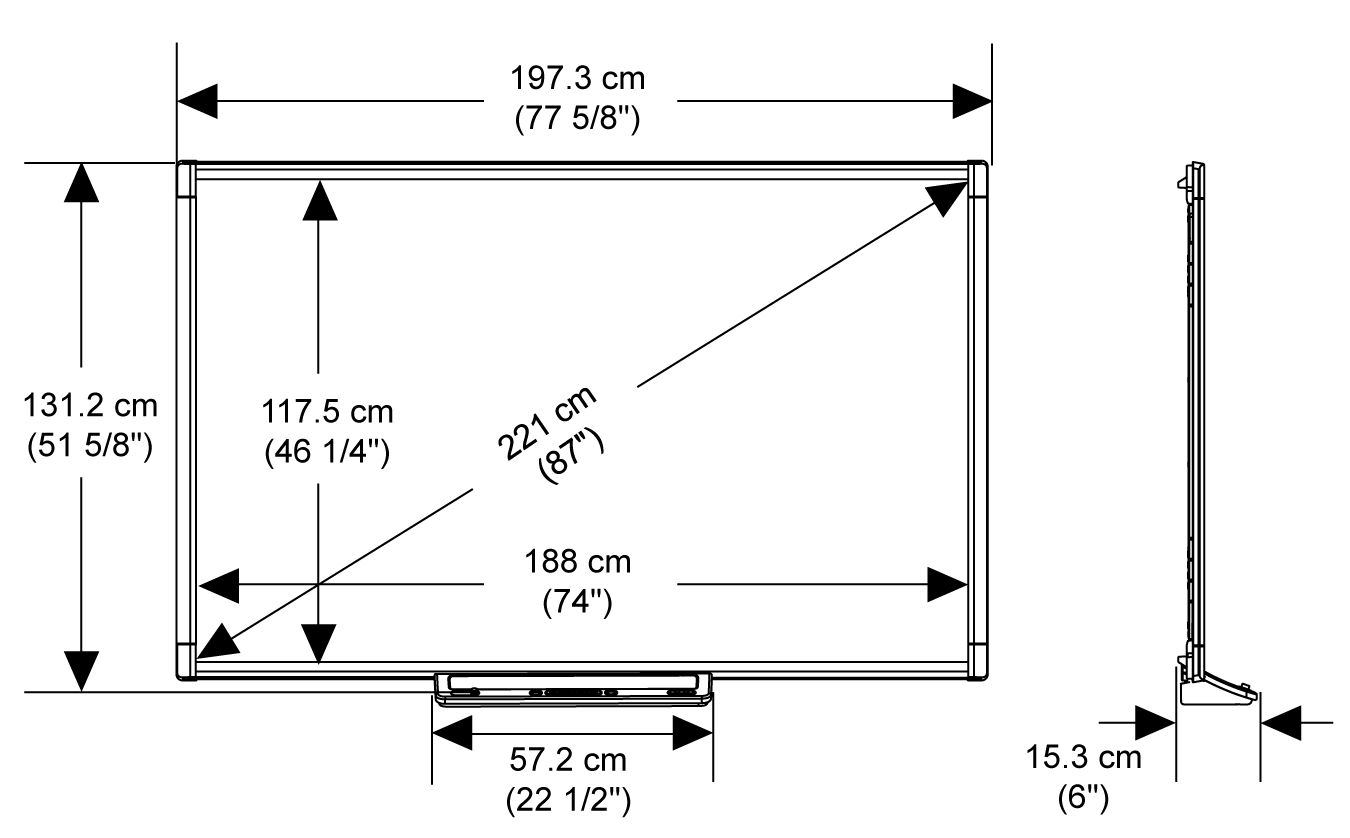

Dimensions

Width: 197.3 cm (77 5/8"); Height: 131.2 cm (51 5/8"); Depth: 15.3 cm (6"); Diagonal: (87")

Interactive whiteboard

Weight
51 lb. (23.1 kg)

Shipping dimensions
82" × 53" × 4 1/2" (208.3 cm × 134.6 cm × 11.4 cm)

Shipping weight
69 lb. (31.3 kg)

Accessory box

Shipping dimensions
33" ×4" × 7" (83.8 cm × 10.2 cm × 17.8 cm)

Shipping weight
5 lb. 3 oz. (2.4 kg)

Note

All dimensions ± 1/8" (0.3 cm). All weights ± 2 lb. (0.9 kg).

Software

You can install SMART Learning Suite, including SMART Notebook collaborative learning software, SMART Product Drivers, and SMART Ink, from smarttech.com/downloads. Software upgrades are also available.

Computer requirements

A computer or laptop with a Windows operating system or Mac operating system software and SMART Learning Suite installed. For a complete list of computer requirements, go to the SMART Notebook software release notes. 1

Touch and gestures

You can write, erase and perform mouse functions by touching the interactive whiteboard with your finger or a pen. This interactive whiteboard also features gesture capability, providing a natural and flexible way to interact with content.

Multitouch capabilities

Support for two simultaneous touches enables up to two users to interact with the interactive whiteboard by using the included pens or other objects, or by using their fingers to write and to perform gestures.

Pen tray with projector controls

The pen tray connects to the interactive whiteboard and a projector. Use the color select buttons to change digital ink colors. Power and volume controls are available on the pen tray, as are the on-screen keyboard, right-click and orient features. The USB devices switch, which is controlled by a compatible Epson for SMART projector, enables the use of the interactive whiteboard with up to two different computers.

Pen

Includes two pens

Screen surface

The hard-coated steel surface is durable, is optimized for projection and is compatible with dry‑erase markers.

Digitizing technology

Four-camera DViT

Frame finish

White and light gray (approximates PANTONE Cool Gray 4C)

Power requirements

6' (1.8 m) power cable and 6" (15 cm) Y-cable. Power consumption is less than 7 W (100V to 240V AC, 50/60 Hz, 5V DC 2.0A).

Computer connection

Includes a 16' (5 m) USB 2.0 cable to connect to the room computer.

Your SMART Board M685E interactive whiteboard supports one computer connection on a primary display only.

Storage

-4°F to 122°F (-20°C to 50°C)

Operation

41°F to 95°F (5°C to 35°C) with up to 80% humidity, non-condensing

Regulatory certification

CSA (U.S./Canada)

Environmental compliance

China

EIP

European Union

REACH, RoHS, WEEE, Packaging and ErP Standby

U.S.

Packaging and Conflict Minerals

Interactive whiteboard

Two-year limited equipment warranty (see smarttech.com/warranty for more information)

Accessories

The accessories have a one-year warranty.

Notes

  • A digital projector isn’t included with this model of SMART Board interactive whiteboard. To take advantage of all interactive features, integrate an Epson for SMART projector. The SMART Board M680E interactive whiteboard supports the following digital projectors:

    • PowerLite 585W for SMART

    • PowerLite 685W for SMART (V11H744620)

    These projectors may or may not be available in your region. Contact your SMART reseller for more information.

  • For more information about Epson for SMART projectors, see Epson for SMART projector compatibility and Upgrade options for out of warranty SMART projectors.

Order numbers

SBM685E

87" (221 cm) diagonal SMART Board M685E interactive whiteboard with an active pen tray. Includes a SMART Notebook software installation DVD.

Optional accessories

See smarttech.com/accessories
