Adjusting video settings with the on-screen display (OSD) menu

If you’re using a VGA video input, the screen settings adjust automatically when you turn on the interactive pen display. This feature adjusts the phase settings and the vertical and horizontal positions. You can also use the on-screen display (OSD) menu to adjust the screen settings.

Important

Changing color, color temperature, contrast, brightness, or backlight settings overrides the color profile used with interactive pen display.

Notes

  • For the best display quality, set the video card to the 1920 × 1080 native resolution of the interactive pen display.

  • If the interactive pen display doesn’t adjust the screen settings automatically, you can use the Auto Adjust OSD option (VGA only).

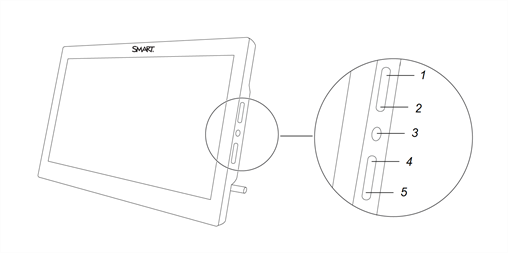

No.

OSD control

1

Select item

2

Up arrow

3

OSD menu button

4

Down arrow

5

Previous menu item

To change settings in the OSD menu

  1. Press the OSD menu button on the side control panel.

    The OSD menu appears.

  2. Press and to browse to the sub-menu that contains the setting you want to change.

  3. Press to select the sub-menu.

    Tip

    Press to return to the previous screen.

  4. Press and to browse to the setting you want to change.

  5. Press to select the setting, and then press or to change the setting.

    The changes you make are applied immediately.

  6. Press to save your changes.

  7. Press to return to the previous screen.

    OR

    Press the OSD menu button to exit the on-screen menu.

This table describes the settings available through the OSD menu:

Menu item

Function

Brightness/Contrast

Brightness

Adjusts the brightness of the image and background

Contrast

Adjusts the difference between the lightest and darkest areas of the image

Backlight

Adjust the back light brightness

Custom RGB

Red

Adjust the color values for red

Green

Adjust the color values for green

Blue

Adjust the color values for blue

Color Presets

5000K

Sets the color temperature to 5000K

6500K

Sets the color temperature to 6500K

9300K

Sets the color temperature to 9300K

Direct

Displays colors directly from the video card without any adjustment

Display Settings

Scaling

Sets the scaling to:

  • Full: Resizes the image to fill the whole screen.

  • Aspect: Resizes the image to fill as much of the screen as possible while maintaining the correct aspect ratio.

  • 1:1: Displays the image at the actual resolution.

Horizontal Position

Controls the image’s horizontal position within the display area

Vertical Position

Controls the image’s vertical position within the display area

VGA Settings

N/A

The VGA Settings menu is only accessible when a VGA cable is used to connect the interactive pen display to a computer.

Accessing the VGA settings menu enables you to adjust the display’s Phase and Pitch settings. You can also enable settings to be set automatically by selecting Auto Adjust.

Other Settings

Language

Selects the language used by the OSD menu

Menu Transparency

Changes the opacity of the OSD menu background

Reset

Restores the display’s settings to their factory default settings
