SMART Board M685V specifications

Overview

SMART Board 685V interactive whiteboard

Your SMART Board M685V interactive whiteboard features a durable interactive surface, two damage-resistant pens and SMART’s proprietary DViT (Digital Vision Touch) technology. The SBM685V model supports dual touch, dual write and intuitive gestures, such as toss, rotate and zoom, available with multitouch operating systems, such as Windows 7 or Mac Snow Leopard.

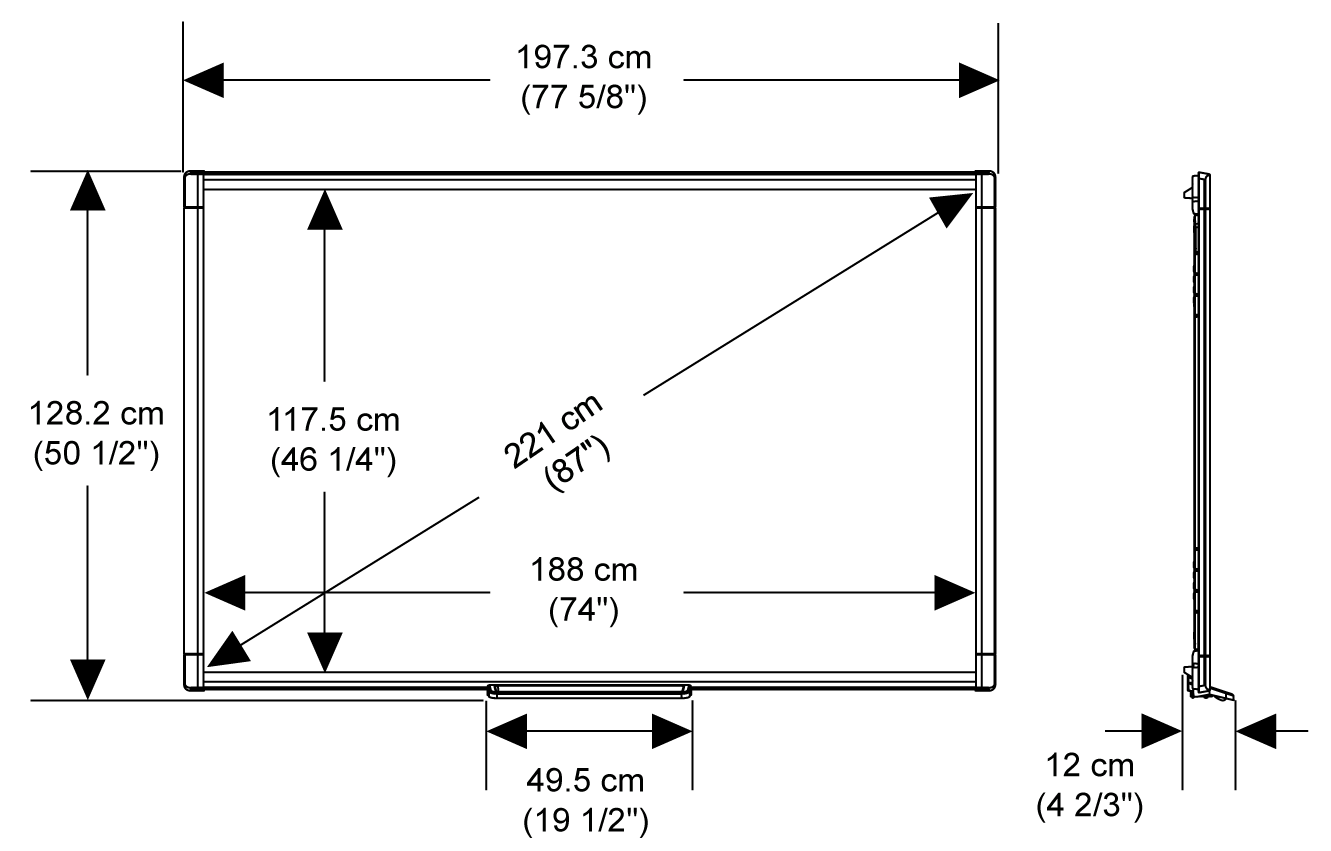

Dimensions

Width: 197.3 cm (77 5/8"); Height: 128.2 cm (50 1/2"); Depth: 12 cm (4 2/3"); Diagonal: (87")

Weight

23.1 kg (51 lb.)

Shipping dimensions

208.3 cm × 134.6 cm × 11.4 cm (82" × 53" × 4 1/2")

Shipping weight

31.3 kg (69 lb.)

Accessory kit weight (pen ledge)

1.4 kg (3 lb. 2 oz.)

Note

All dimensions ± 1/8" (0.3 cm). All weights ± 2 lb. (0.9 kg).

Software

You can install SMART Learning Suite, including SMART Notebook collaborative learning software, SMART Product Drivers, and SMART Ink, from smarttech.com/downloads. Software upgrades are also available.

Computer requirements

A computer or laptop with a Windows operating system, Mac operating system software or Linux operating system and SMART Learning Suite installed. For a complete list of computer requirements, go to the SMART Notebook software release notes. 1

Touch and gestures

Enables you to write, to erase and to perform mouse functions by touching the interactive whiteboard with your finger or a pen. This interactive whiteboard also features gesture capability, providing a natural and flexible way to interact with content.

Multitouch capabilities

Support for two simultaneous touches enables up to two users to interact with the interactive whiteboard by using the included pens or other objects, or by using their fingers to write and to perform gestures.

Pen ledge

The durable pen ledge holds the two included pens.

Pen

Includes two pens

Screen surface

The hard-coated steel surface is durable, is optimized for projection and is compatible with dry‑erase markers.

Digitizing technology

Four-camera DViT

Frame finish

White and light gray (approximates PANTONE Cool Gray 4C)

Power requirements

1.8 m (6') power cable. Power consumption is less than 7 W (100V to 240V AC, 50/60 Hz, 5V DC 2.0A).

Computer connection

Includes a 5 m (16') USB 2.0 cable to connect to the room computer.

Your SMART Board M685V interactive whiteboard supports one computer connection on a primary display only.

Storage

-20°C to 50°C (-4°F to 122°F)

Operation

5°C to 35°C (41°F to 95°F) with up to 80% humidity, non-condensing

Regulatory certification

CSA (U.S./Canada)

Environmental compliance

China

EIP

European Union

REACH, RoHS, WEEE, Packaging and ErP Standby

U.S.

Packaging and Conflict Minerals

Order numbers

SBM685V

221 cm (87") diagonal SMART Board M685V interactive whiteboard with pen ledge. Includes a SMART Notebook software installation DVD.

SBM685V‑B

Bulk order of 10 SBM685V units

Optional accessories

See smarttech.com/accessories

Warranty

Two-year limited equipment warranty (see smarttech.com/warranty for more information)
