SMART Board M Pro series TAA specifications

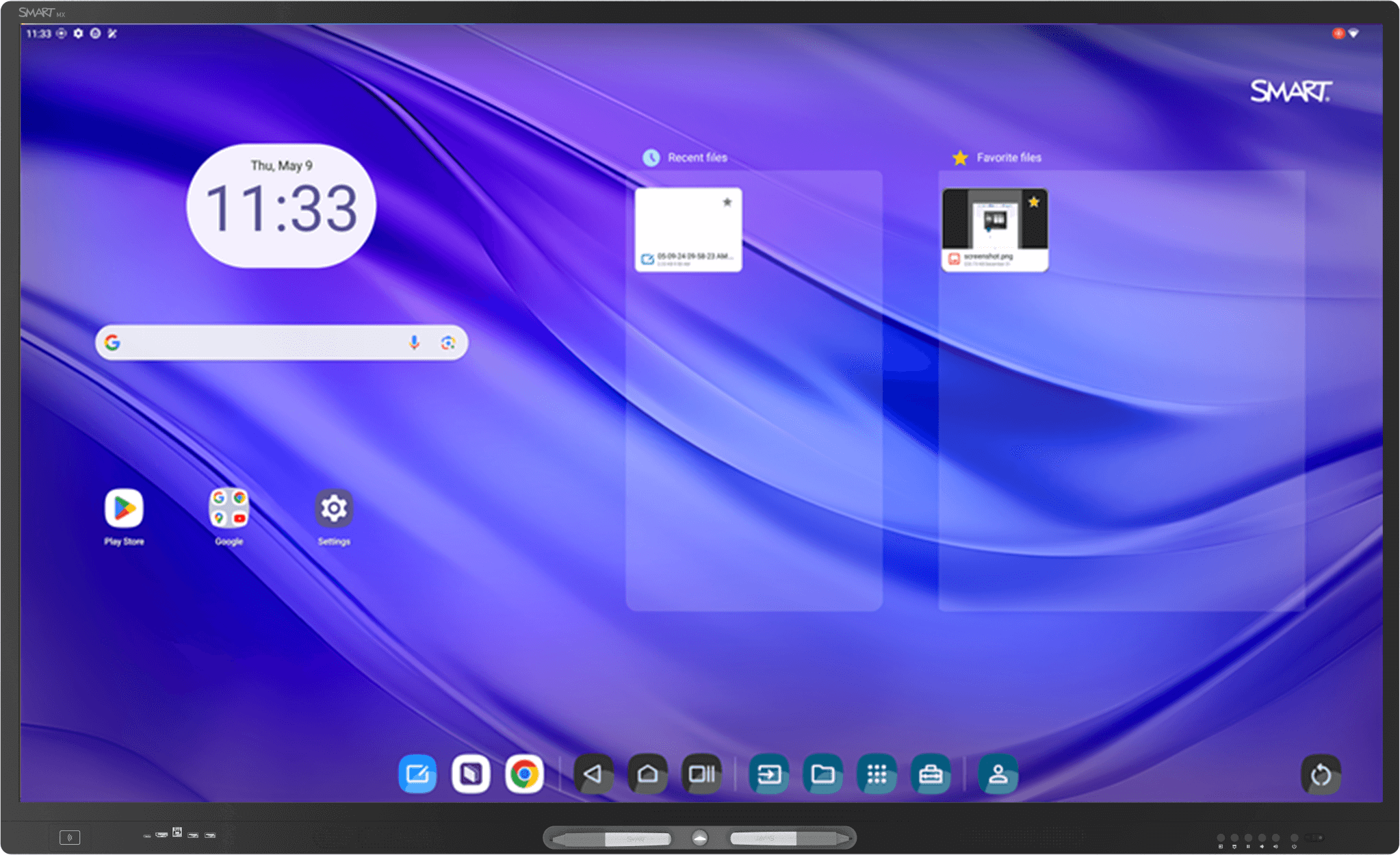

SMART Board M (V5) Pro series interactive display with iQ
ENERGY STAR certificationHDMI

Screen sizes (diagonal)

  • 55"
  • 65"
  • 75"
  • 86"

Backlight

LED

Aspect ratio

16:9

Maximum display resolution

4K UHD (3840 × 2160)

Refresh rate

60 Hz

Lifespan

≥ 50,000 hours

Brightness 1

55": 300 cd/m²

65", 75", 86": 400 cd/m²

Display response time

≤ 8 ms

Viewing angle

178°

Glass

  • 55": Full heat-tempered
  • Anti-glare
  • 65", 75", 86": Full heat-tempered
  • Anti-glare
  • Bonded

Frame color

Black

Convenience buttons

  • Power
  • Home
  • Volume
  • Input select
  • Screen shade
  • Freeze frame

Sensors

  • Ambient light
  • Infrared

Audio

55": 2 integrated 15 W speakers

65", 75", 86": 2 integrated 20 W speakers

NFC

Integrated RFID NFC reader/writer

CCID (chip card interface device) when used with a native operating system driver for Windows, Linux, or Mac

Supported protocols: ISO 14443A/B, ISO 15693, NFC Tag 1-4

Touch technology

HyPr Touch with Advanced IR

Touch features

Simultaneous tool differentiation

Object Awareness

Silktouch

Typical touch response time

≤ 5 ms

Frame rate

≥ 200 Hz

Accuracy

1 mm

Minimum object size

2 mm

Multitouch capabilities

Up to 50 touch points (OS dependent)

Tools included

Pens (×2)

Tool holders

  • Magnetic
  • Frame‑mounted

Included

iQ embedded Android OS

SMART Product Drivers and SMART Ink

SMART Remote Management 2

Optional

Operating system

Android version 13.0 (forward compatible)

Android version 13.0

(Automatic update to Android version 15.0 scheduled for the second half of 2025.)

CPU

Octa-core

Memory

8 GB DDR4

OS architecture

64-bit

Storage

64 GB (up to 576 GB)

User interface

4K UHD (3840 × 2160)

Digital whiteboard

Yes

Web browser

Yes

Screen sharing

Yes

Google Play Protect Certified 3

Yes

Google Play Store

Yes

Other features

Personalized home screen and settings

Input select

Split screen

Picture-in-picture (PIP) with touch pass-through

Templates

File and app libraries

Ability to run third-party applications

Yes

Cloud storage access

Yes

NFC sign in to a SMART Account

Yes

Device-based sign in to a SMART Account

Yes

Languages supported

  • Basque
  • Catalan/Valencian
  • Chinese (simplified)
  • Chinese (traditional)
  • Czech
  • Danish
  • Dutch
  • English
  • Estonian
  • Finnish
  • French
  • Galician
  • German
  • Greek
  • Hungarian
  • Italian
  • Japanese
  • Korean
  • Latvian
  • Lithuanian
  • Norwegian
  • Polish
  • Portuguese
  • Romanian
  • Russian
  • Slovak
  • Slovenian
  • Spanish
  • Swedish
  • Ukrainian
  • Vietnamese
  • Welsh

Updates

Automatic over‑the‑air (OTA)

OPS support 4

SMART PCM modules

PC module power supported OPS

85 W

Optional computing module

Seesmarttech.com/accessories

Type

Front

Back

OPS PC accessory slot

–

1

microSD slot with security cover

–

1

HDMI 2.1 4K @ 60Hz with HDCP 1.4, HDCP 2.3, ARC, and eARC support 5

1

3

VGA video

–

1

Stereo 3.5 mm (variable)

–

1

RS-232 (DB-9 connector)

–

1

RJ45 (LAN IN)

–

1

USB Type-C 4K @ 60Hz Display Port 1.2, HDCP 2.3 and HDCP 1.3, USB 2.0 (UFP) for touch and digital audio, USB 3.2 Gen 1 (DFP) for peripherals; 27 W power delivery

1

–

USB Type‑C, 4K @ 60Hz, Display Port 1.2, USB 2.0 (UFP) for touch and digital audio, USB 3.2 Gen 1 (DFP) for peripherals; 65W power delivery

–

1

USB 2.0 Type-A

–

1

USB 3.2 Gen 1 Type‑A

2

2

USB 3.2 Gen 1 Type‑B

1

3

Type

Front

Back

HDMI 2.1 4K @ 60Hz with HDCP 2.3 support

–

1

USB Type-C 4K @ 60Hz Display Port 1.4a, HDCP 2.3 and HDCP 1.3, USB 3.2 Gen 1 (DFP) for touch ingest and peripherals; 4.5 W power delivery

–

1

Stereo 3.5 mm (variable)

–

1

S/PDIF optical (fixed)

–

1

RJ45 (LAN OUT)

–

1

Type

Qty

Country-specific power cable

1

16' 5" (5 m) USB 2.0 A to B cable

1

6' (1.8 m) USB 3.2 Gen 1 Type-C cable, 5A

1

Pens

2

External tri-band Wi-Fi (2.4, 5, and 6-7.2 GHz) and Bluetooth (2.4 GHz) antennas

2

Remote control

1

AAA batteries

2

Illustrated installation instructions

1

Important information document

1

Wired

RJ45 (×2) 1000BASE-T

Wi-Fi

IEEE 802.11ax (Wi-Fi 6e) supporting WPA, WPA2, WPA3 PSK, and 802.1X EAP authentication protocols

Bluetooth

5.2 dual mode

Power requirements

100V to 240V AC, 50 Hz to 60 Hz

Operating temperature

41–95°F (5–35°C)

Storage temperature

-4–140°F (-20–60°C)

Humidity

5–80% relative humidity, non‑condensing

Typical

55": 72 W

65": 90 W

75": 103 W

86": 149 W

Standby

0.2 W

Regulatory models

  • IDX55‑5
  • IDX65‑5
  • IDX75‑5
  • IDX86‑5

Country of origin

Mexico

US / Canada

  • UL
  • FCC
  • ISED
  • TSCA
  • CONEG Packaging
  • Proposition 65

EU / EEA / EFTA / UK

  • CE
  • UKCA
  • LVD
  • CB
  • EMCD
  • RED
  • REACH
  • RoHS
  • Battery
  • WEEE
  • Packaging
  • POP
  • Ecodesign

Australia / New Zealand

  • RCM
  • RSM

Performance standards

  • ENERGY STAR
  • HDMI
  • HDCP

Notes

  • Product availability may vary by region.

  • This product has received additional certifications not listed here.

M555-V5-P

SMART Board M055-V5 Pro interactive display with iQ, TAA

M565-V5-P

SMART Board M065-V5 Pro interactive display with iQ, TAA

M575-V5-P

SMART Board M075-V5 Pro interactive display with iQ, TAA

M586-V5-P

SMART Board M086-V5 Pro interactive display with iQ, TAA

WM-SBID-200

SMART Wall Mount for SMART MX series interactive displays

Other accessories

Seesmarttech.com/accessories

Note

Order numbers may vary by region.



Terms and conditions and warranty upgrade options vary by region. Visit smarttech.com/warranty or contact your reseller for information.

Notes

  • All dimensions ± 1/8" (0.3 cm). All weights ± 2 lb. (0.9 kg). All dimensions and weight values are preliminary and subject to change.

  • Product ships upright.

  • Leave space around the display to ensure adequate ventilation.

Dimensions

Screen (diagonal): 55ʺ; Width: 51 1/4ʺ (130.1 cm); Height: 32 1/4ʺ (81.8 cm); Depth: 3 3/4ʺ (9.6 cm)

Weight

71 lb. (32 kg)

Shipping dimensions (including pallet)

56 1/8" × 43 3/4" × 6 1/4"
(142.5 cm × 111 cm × 16 cm)

Shipping weight

103 lb. (47 kg)

VESA mount

  • M8
  • 400 × 400 mm

Handles

–

Dimensions

Screen (diagonal): 65ʺ; Width: 59 3/8ʺ (150.7 cm); Height: 36 1/2ʺ (92.8 cm); Depth: 3 1/2ʺ (8.9 cm)

Weight

89 lb. (40 kg)

Shipping dimensions (including pallet)

63 3/4" × 45 7/8" × 6 1/4"
(162 cm × 116.5 cm × 16 cm)

Shipping weight

124 lb. (56 kg)

VESA mount

  • M8
  • 600 × 400 mm

Handles

2

Dimensions

Screen (diagonal): 75ʺ; Width: 68 3/8ʺ (173.7 cm); Height: 41 3/4ʺ (106.1 cm); Depth: 3 1/2ʺ (8.9 cm)

Weight

119 lb. (54 kg)

Shipping dimensions (including pallet)

71 5/8" × 50 5/8" × 6 1/4"
(182 cm × 128.5 cm × 16 cm)

Shipping weight

159 lb. (72 kg)

VESA mount

  • M8
  • 800 × 400 mm

Handles

2

Dimensions

Screen (diagonal): 86ʺ; Width: 78ʺ (196.2 cm); Height: 47 1/4ʺ (119.9 cm); Depth: 3 1/2ʺ (8.9 cm)

Weight

150 lb. (68 kg)

Shipping dimensions (including pallet)

85 1/4" × 56 7/8" × 6 1/4"
(216.5 cm × 144.5 cm × 16 cm)

Shipping weight

207 lb. (94 kg)

VESA mount

  • M8
  • 800 × 600 mm

Handles

4
