Using the front control panel

The front control panel contains buttons for turning the display on and off, controlling the volume, freezing and unfreezing the screen, and going to the Home screen.

The front control panel also includes a light that indicates the display’s current power state.

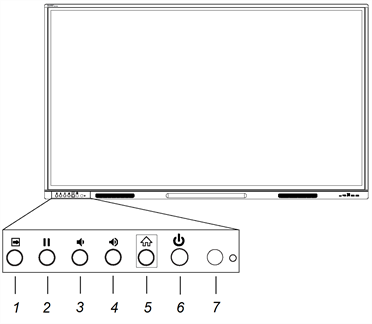

Position of the six buttons on the front control panel numbered 1 to 6 - left to right

No.

Name

Procedure

For more information

1

Input select

Press to switch inputs.

SeeViewing a connected computer’s input

2

 Freeze

Press to freeze and unfreeze the screen.

SeeFreezing the screen

3

Volume decrease

Press to turn down the volume.

SeeAdjusting the volume

4

Volume increase

Press to turn up the volume.

SeeAdjusting the volume

5

Home

Return to the Home screen.

N/A

6

Power, and status light

SeeWaking up the display and putting it back in Standby mode mode

7

Remote control receiver and ambient light sensor

N/A

N/A

The Power button’s color indicates the display’s status:

Power button

Display status

Off

Not receiving power

Red (solid)

Standby mode

Red/blue (blinking, slow)

Ready mode

Blue

Normal operating mode

Red/blue (flashing, rapid)

Background process running (for example, a firmware update is in progress or display is turning off)
