SMART Board GX (V4) Plus series specifications

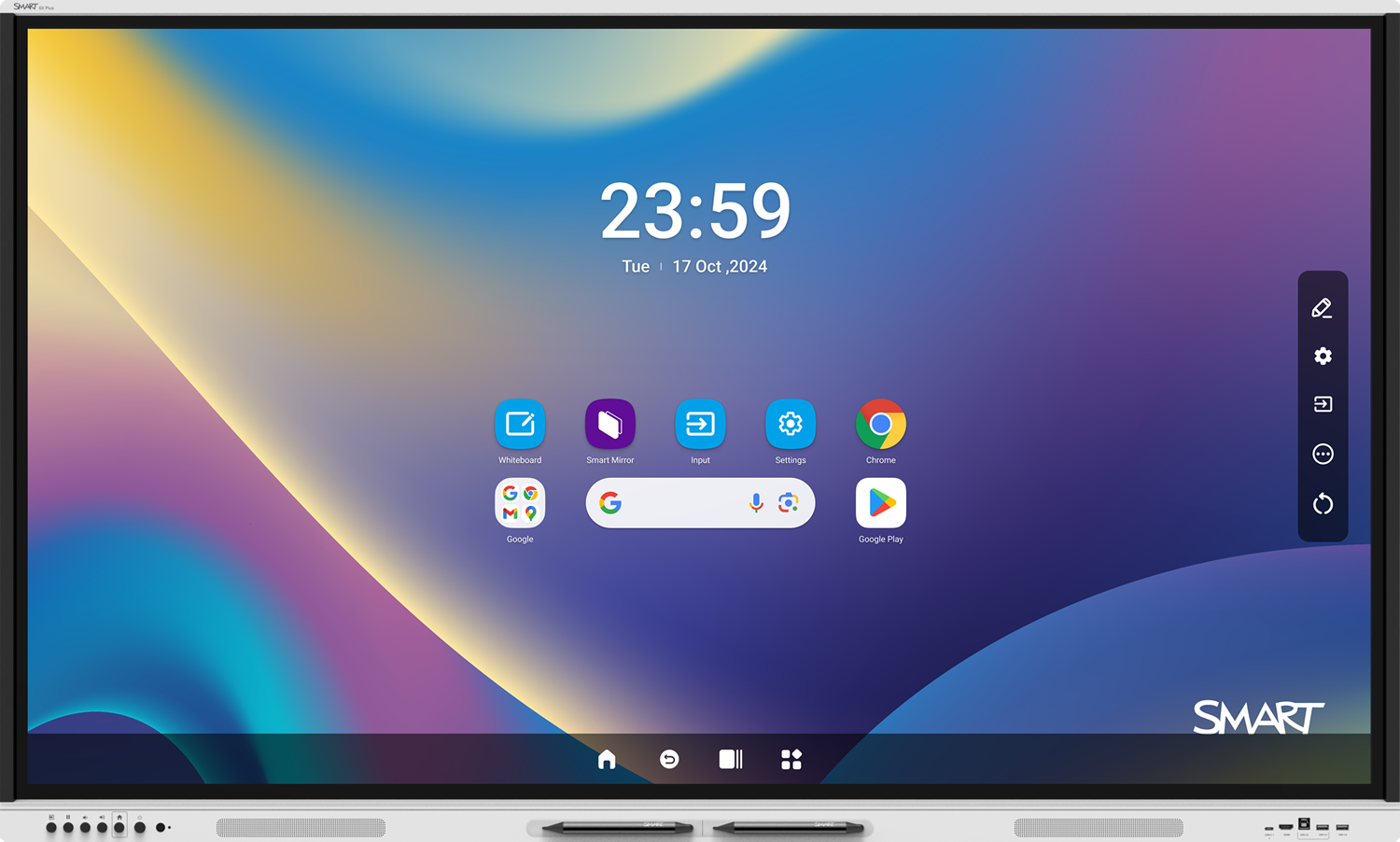

SMART Board GX Plus series interactive display
ENERGY STAR certificationHDMI

Screen sizes (diagonal)

  • 65"
  • 75"
  • 86"

Backlight

LED

Aspect ratio

16:9

Maximum display resolution

4K UHD (3840 × 2160)

Refresh rate

60 Hz

Lifespan

≥ 50,000 hours

Brightness 1

400 cd/m²

Display response time

≤ 8 ms

Viewing angle

178°

Glass

  • Full heat-tempered
  • Anti-glare
  • Bonded

Frame color

White

Convenience buttons

  • Power
  • Home
  • Volume
  • Input select
  • Freeze frame

Sensors

  • Ambient light
  • Infrared

Audio

2 integrated 20W speakers with high fidelity audio

Touch technology

Advanced infrared

Touch features

Simultaneous tool differentiation 2

Object Awareness 3

Silktouch

Typical touch response time

≤ 2.5 ms

Frame rate

≥ 400 Hz

Accuracy

1 mm

Minimum object size

2 mm

Multitouch capabilities

Up to 50 touch points (OS dependent)

Tools included

Pens (×2)

Tool holders

  • Magnetic
  • Frame‑mounted

Included

Embedded Android OS

SMART Mirror

SMART Notebook

SMART Product Drivers and SMART Ink

Optional

SMART Notebook Plus

Lumio

SMART Meeting Pro

SMART TeamWorks

SMART Remote Management

Operating system

Android version 14.0 (forward compatible)

CPU

Octa-core

Memory

8 GB DDR4

OS architecture

64-bit

Storage

64 GB (up to 576 GB)

User interface

4K UHD (3840 × 2160)

Digital whiteboard

Yes

Web browser

Yes

Screen sharing

Yes

Google Play Protect Certified

Yes

Google Play Store

Yes

Other features

Input select

File manager

Overlay

Split screen

Picture-in-picture (PIP) with touch pass-through

Interactive widgets

App library

Ability to run third-party applications

Yes

Cloud storage access

Yes

Languages supported

  • English
  • French
  • Spanish

Updates

Over‑the‑air (OTA)

SMART OPS modules 4

  • SMART PCM modules

OPS power

65 W

More information

Seesmarttech.com/accessories

Type

Front

Back

OPS PC accessory slot

–

1

microSD slot

–

1

HDMI 2.1 4K@ 60Hz with HDCP 1.4, HDCP 2.2/2.3, and ARC support 5

1

2

Display Port 1.4a with HDCP 1.4 and HDCP 2.2/2.3 support

–

1

VGA video

–

1

Stereo 3.5 mm

–

1

RS-232 (DB-9 connector)

–

1

RJ45 (LAN In)

–

1

USB Type‑C 4K @ 60Hz Display Port alternate mode, touch, digital audio, USB 3.2 Gen 1 (DFP) for peripherals; up to 65 W power delivery

1

–

USB Type‑C 4K @ 60Hz Display Port alternate mode, touch, digital audio, USB 2.0 Hi-Speed

–

1

USB 2.0 Type-A

–

1

USB 3.2 Gen 1 Type‑A

2

2

USB 2.0 Type-B

–

2

USB 3.0 Type‑B

1

–

Type

Front

Back

HDMI 2.1 4K @ 60Hz with HDCP 1.4 and 2.3 support

–

1

USB Type-C 4K @ 60Hz Display Port alternate mode

–

1

Stereo 3.5 mm (variable)

–

1

S/PDIF optical (fixed)

–

1

RJ45 (LAN Out)

–

1

Type

Qty

Country-specific power cable

1

16' 5" (5 m) USB 2.0 A to B cable

1

6' (1.8 m) USB 3.2 Gen 1 Type-C cable, 5A

1

Pens

2

External dual-band Wi-Fi (2.4 and 5 GHz) and Bluetooth (2.4 GHz) antennas

2

Remote control

1

AAA batteries

2

Illustrated installation instructions

1

Important information document

1

Wired

RJ45 (×2) 1000BASE-T

Wi-Fi

IEEE 802.11ax (Wi-Fi 6) supporting WEP, WPA, WPA2, WPA3 PSK, and 802.1X EAP authentication protocols

Wi-Fi access point

Bluetooth

5.2

Power requirements

115V AC, 60 Hz

Operating temperature

32–104°F (0–40°C)

Storage temperature

14–140°F (-10–60°C)

Humidity

20–80% relative humidity, non‑condensing

Typical

65": 82 W

75": 107 W

86": 130 W

Standby

0.2 W

Regulatory models

  • IDGX65-D
  • IDGX75-D
  • IDGX86-D

US / Canada

  • UL
  • cUL
  • FCC
  • ISED
  • TSCA
  • CONEG Packaging
  • Proposition 65

Performance standards

  • ENERGY STAR
  • HDMI
  • HDCP

Notes

  • Product availability may vary by region.

  • This product has received additional certifications not listed here.

GX165N‑V4

SMART Board GX065-V4 Plus interactive display with embedded OS (GMS)

GX175N‑V4

SMART Board GX075-V4 Plus interactive display with embedded OS (GMS)

GX186N‑V4

SMART Board GX086-V4 Plus interactive display with embedded OS (GMS)

Optional accessories

Seesmarttech.com/accessories

Note

Order numbers may vary by region.



Terms and conditions and warranty upgrade options vary by region. Visit smarttech.com/warranty or contact your reseller for information.

Notes

  • All dimensions ± 1/8" (0.3 cm). All weights ± 2 lb. (0.9 kg).

  • Shipping dimensions and weights are for a single product that is not delivered on a pallet.

  • Product ships upright.

  • Leave space around the display to ensure adequate ventilation.

Dimensions

Screen (diagonal): 65ʺ; Width: 58 5/8ʺ (148.8 cm); Height: 35 1/4ʺ (89.6 cm); Depth: 3 7/8ʺ (9.9 cm)

Weight

69 lb. (31 kg)

Shipping dimensions

64 1/8" × 39 7/8" × 7 1/4"
(162.8 cm × 101.4 cm × 18.5 cm)

Shipping weight

84 lb. (38 kg)

VESA mount

  • M8
  • 600 × 400 mm

Handles

2

Dimensions

Screen (diagonal): 75ʺ; Width: 67 1/4ʺ (170.9 cm); Height: 40 1/8ʺ (102 cm); Depth: 3 7/8ʺ (9.9 cm)

Weight

93 lb. (42 kg)

Shipping dimensions

73 3/8" × 45 1/4" × 7 1/4"
(186.3 cm × 114.8 cm × 18.5 cm)

Shipping weight

115 lb. (52 kg)

VESA mount

  • M8
  • 800 × 400 mm

Handles

2

Dimensions

Screen (diagonal): 86ʺ; Width: 77ʺ (195.7 cm); Height: 45 5/8ʺ (116 cm); Depth: 3 3/4ʺ (9.6 cm)

Weight

113 (51 kg)

Shipping dimensions

83 1/8" × 50 7/8" × 7 1/4"
(211 cm × 129.1 cm × 18.5 cm)

Shipping weight

146 lb. (66 kg)

VESA mount

  • M8
  • 800 × 600 mm

Handles

2
