Using the multistylus

You can use the SMART MultiStylus to write and draw in digital ink on compatible SMART Board interactive displays. Use the pressure-sensitive tip to control line thickness, and use the pressure-sensitive eraser end to erase digital ink.

To customize the multistylus button functions, presets, or air mouse behavior, open the SMART MultiStylus app on the display running iQ 4.7.2 or later.

Notes

  • Return the multistylus to the magnetic docking station when you’re done with it.

  • Make sure the multistylus is centered in the docking station to keep it from falling or being damaged.

  • The multistylus’s LED changes from partially to fully lit when properly placed and connected to the docking station.

You can use the multistylus to draw or erase digital ink.

Note

The LED button shows the current mode when first removed from the docking station: solid in the selected ink color for Pen mode, or flashing light blue from bottom to top for Mouse mode.

To write or draw in digital ink

  1. Pick up the multistylus.

  2. Write or draw in digital ink on the screen.

    Tip

    Apply more pressure to make the line thicker, or less pressure to make it thinner. Hold the multistylus at a 45-degree angle to the display surface.

  3. Press the LED button once to switch between the multistylus presets.

    Note

    Change the multistylus’s presets or default behavior in the app.

    SeeCustomizing the multistylus in the app

To erase digital ink

Move the eraser end of the multistylus over the digital ink you want to erase.

OR

Move your fist or palm over the digital ink you want to erase.

You can change between multistylus presets by pressing the LED button once. The LED flashes once in the selected color.

Notes

You can use the multistylus as an air mouse or a clicker when the multistylus is in Mouse mode.

Note

The LED button shows the current mode when first removed from the docking station: solid in the selected ink color for Pen mode, or flashing light blue from bottom to top for Mouse mode.

To use the multistylus as an air mouse

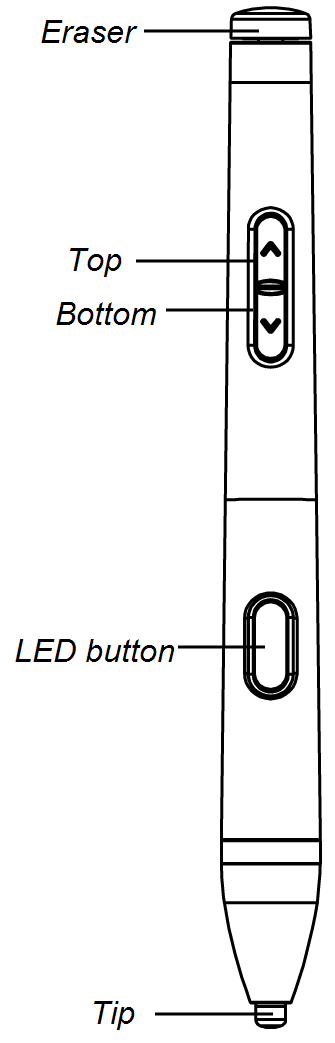

  1. Press the Top and Bottom arrow buttons simultaneously.

  2. The air mouse cursor appears on the screen to indicate that the multistylus is in air mouse mode.

  3. Aim the eraser end of the multistylus at the display and use the arrow buttons to navigate like a standard computer mouse.

    By default, the top arrow is set to Mouse left click.

    By default, the bottom arrow is set to Mouse right click.

    Tips

  4. Switch back to Pen mode by pressing the Top and Bottom arrows simultaneously.
