Specifications
OverviewThe SMART MultiStylus accessory kit is a multi-functional multistylus with a docking station that unlocks new capabilities on SMART Board interactive displays with iQ 4, whether users are at the screen or moving freely around the room. With pen and air mouse modes, customizable buttons, and integrated Tool Explorer (V2) support for cubes and stamps, it enables more interactive teaching, collaboration, and lesson presentation work flows.
FeaturesSupported functionality | Pen mode Air mouse mode |
|---|---|
Buttons |
|
Stylus tip | 4096 levels of pressure |
Eraser | Pressure-activated |
Interactive experiencePen mode functions |
|
|---|---|
Air-mouse mode functions |
|
Tool Explorer function | Optional cubes and stamps (V2) |
Connectors and mountingDocking station connector | USB 2.0 Type-C input |
|---|---|
Docking station mount | Magnetic, mounted on the display’s frame |
Stylus mount | Magnetic, mounted on the docking station |
PowerMultiStylusPower source | Ultra-capacitor |
|---|---|
Auto-on | Motion-activated |
Usage time | 10 hours (mode dependent) |
Standby time | 168 hours (in sleep mode; activates after 10 minutes of inactivity) |
Charge time | Quick charge: 1 minute for up to 60 minutes of usage time Full charge: 6 minutes |
Charge method | Wireless charging using the docking station |
Docking stationPower source | 5V DC |
|---|---|
Power consumption | <4.5W |
Storage and operating requirementsStorage temperature | |
|---|---|
Humidity | 5–80% relative humidity, non-condensing |
Included componentsType | Qty |
|---|---|
SMART MultiStylus | 1 |
SMART Docking Station with Tool Explorer (V2) technology | 1 |
USB 2.0 Type C to Type A, 3 m | 1 |
Hardware set (1 screwdriver, 2 screws) | 1 |
Illustrated installation instructions | 1 |
ConnectivityWired | USB-C to USB-A |
|---|---|
Wireless operating range | > |
Tool integrationSoftware | iQ 4.7.2 or later SMART Product Drivers and Ink SMART Notebook 25 or later |
|---|---|
Operating systems | Windows 11 macOS 26 |
Compatible displays | SMART Board MX (V5) SMART Board MX (V5) Plus SMART Board QX (V2) Pro SMART Board RX |
Accessories | Tool Explorer (V2) stamps and cubes |
Certification and complianceRegulatory models |
|
|---|---|
US / Canada |
|
EU / EEA / EFTA / UK |
|
Australia / New Zealand |
|
Purchasing informationOrder numbersSMS-TE-IQ4 | SMART MultiStylus with Tool Explorer (V2) technology, Accessory Kit, for displays with embedded iQ 4 |
|---|
Optional accessoriesTE-4CUBE-V2 | Tool Explorer (V2) cubes |
|---|---|
TE-4STAMP-V2 | Tool Explorer (V2) stamps |
SMART Warranty
| Terms and conditions and warranty upgrade options vary by region. Visit smarttech.com/warranty or contact your reseller for information. |
|---|
Installation, dimensions, and weightsNotes
All dimensions ± 0.3 cm. All weights ± 5 g.

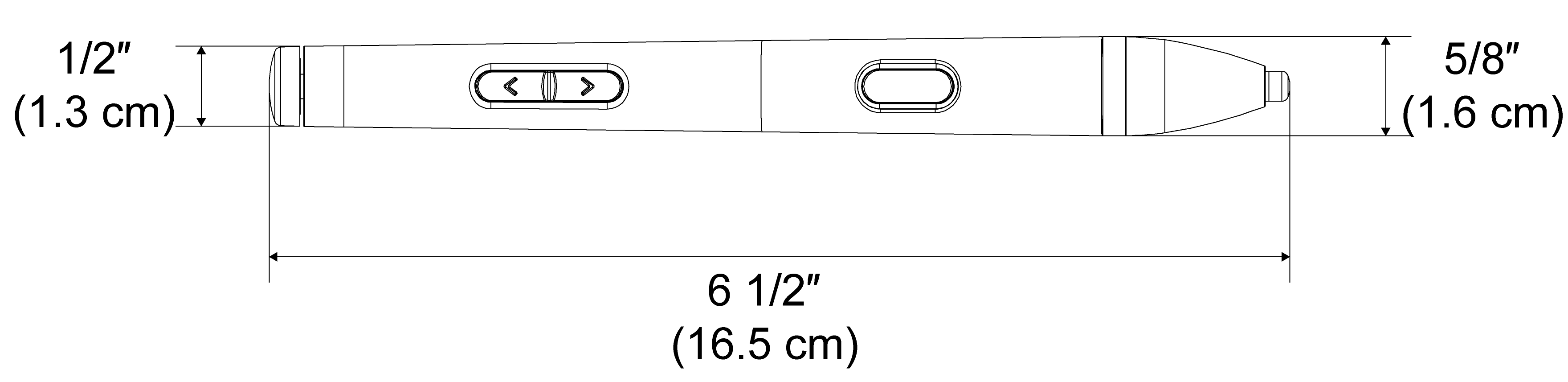

SMART MultiStylusDimensions
Weight
Shipping dimensions
Shipping weight

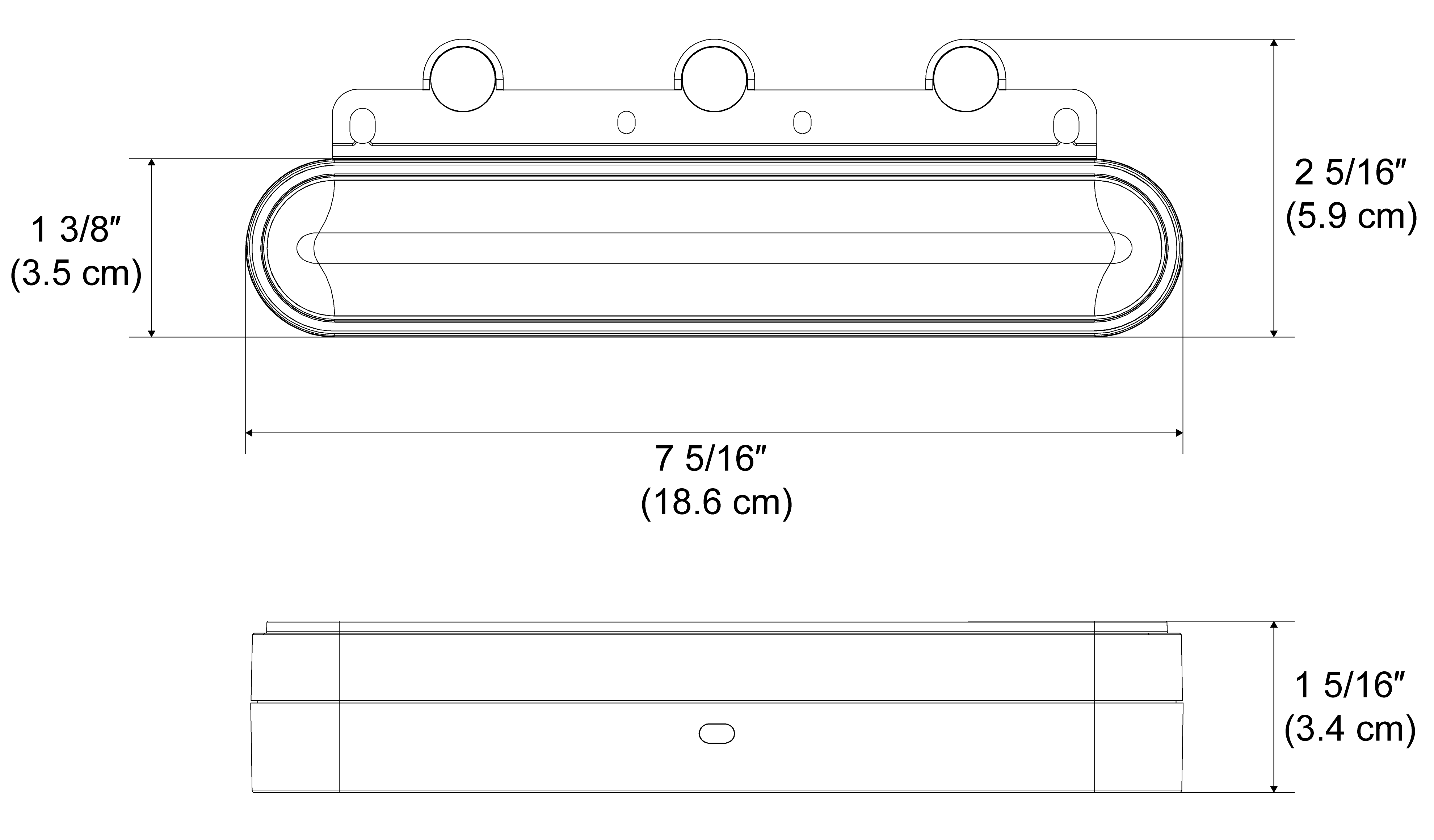

SMART Docking StationDimensions
