WSE-500 specifications

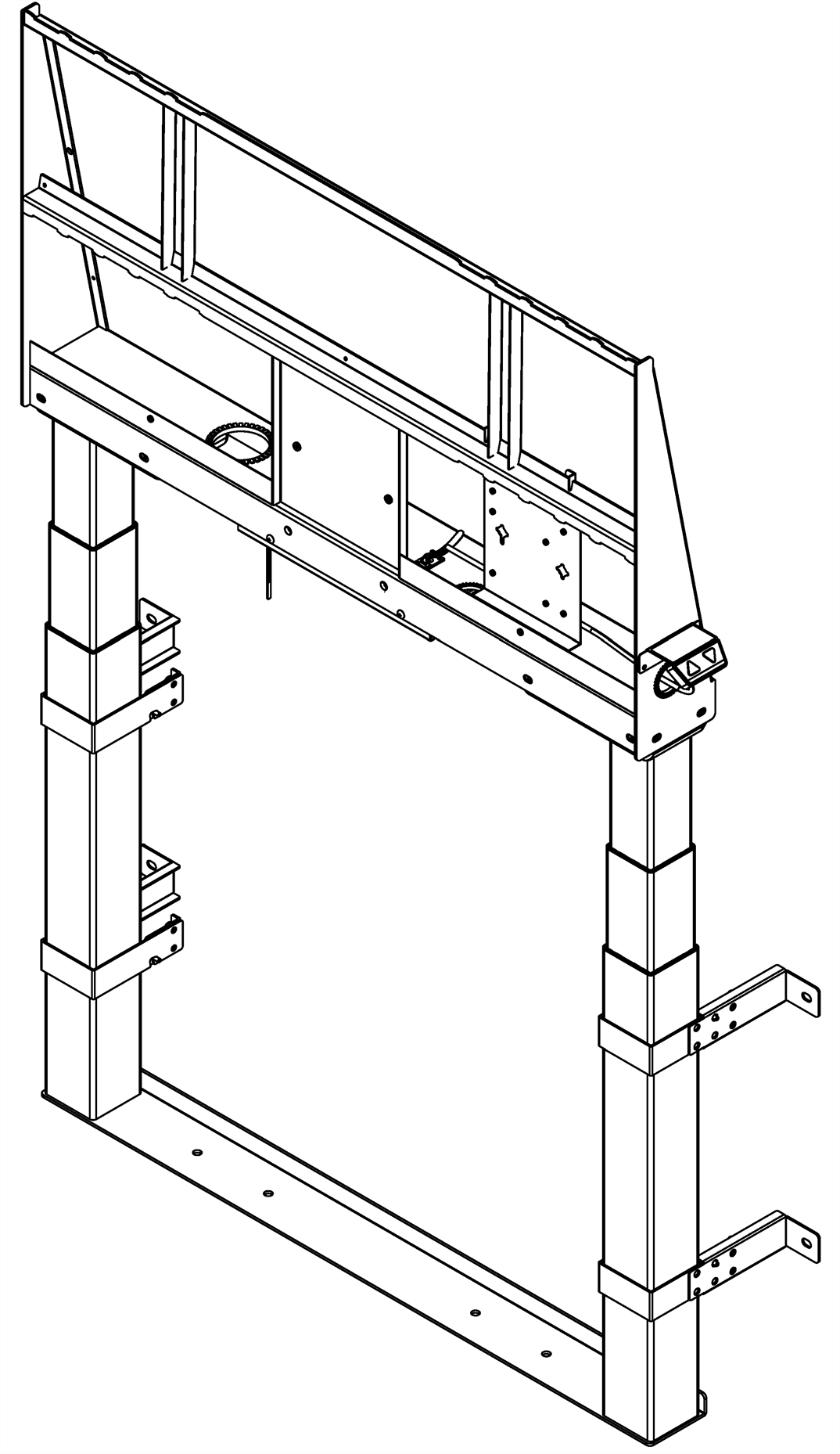

Designed for the current line of SMART Board interactive displays, the SMART electric height-adjustable wall stand features 26" (65 cm) of powered height adjustment with a bounce-back feature if an obstruction is detected. With its sturdy steel frame, the stand supports displays up to 86" (218 cm) diagonal and 254 lb. (115 kg) total weight including accessories. The stand has a TUV-certified drive system and complies with Americans with Disabilities Act (ADA) standards. The stand also includes multiple VESA mounting points for easy installation of the display and peripherals.

Supported SMART Board displays

SMART Board RX series

SMART Board GX series

SMART Board MX series

SMART Board M Pro series

SMART Board NX series

SMART Board QX Pro series

SMART Board 6000S (V3)

Maximum display size

Supports displays up to 86" (218 cm) diagonal and 80" (203 cm) wide

Maximum display weight

220 lb. (100 kg)

Maximum lift capacity

254 lb. (115 kg)

Range

26" (65 cm)

Maximum extended height

69" (174 cm)

Minimum extended height

43" (109 cm)

Mounting

VESA mounting patterns

400x400

500x400

600x400

700x400

800x400

800x600

All M8.

Unit: mm

Software

SMART Electric Stand Android app available for download. 1

Supply voltage (North America)

120V AC, 60 Hz

Supply voltage (Europe)

230V AC, 50 Hz

Standby mode

< 0.7 W

Duty cycle

10% (2 minutes of operation fully loaded, 18 minutes of rest)

Operating temperature

32–104°F (0–40°C)

Storage temperature

-4–140°F (-20–60°C)

Humidity

90% non-condensing

Transfer cable

1

Power strip

1

Regulatory certification

FCC, ISED, UL (US and Canada) Usage Area IA, CB, CE, LVD, EMCD, UKCA

Environmental compliance

RoHS, REACH, POP, Packaging, WEEE, TSCA, CONEG Packaging, California Prop 65

Other

ADA

Order number: WSE-500-W

SMART Electric Height-Adjustable Wall Stand, WSE-500-W, UL Listed, Non-Locking, White

Order number: FSE-500-LS-WH

Laptop Shelf, SMART Stand, FSE-500-LS-WH, White

Order number: FSE-500-CM-BK

Camera Bracket, SMART Stand, FSE-500-CM-B, Black

Optional accessories

See smarttech.com/accessories

SMART Warranty

5 years

Notes

  • All dimensions ± 0.3 cm. All weights ± 0.9 kg.

  • Product ships upright.

Dimensions

Stand weight

64 lb. (29 kg)

Shipping carton dimensions

39" × 30 1/2" × 6 1/8"
(98 cm × 77 cm × 15 cm)

Shipping weight

75 lb. (34 kg)
