HD-1021AOC cable specifications

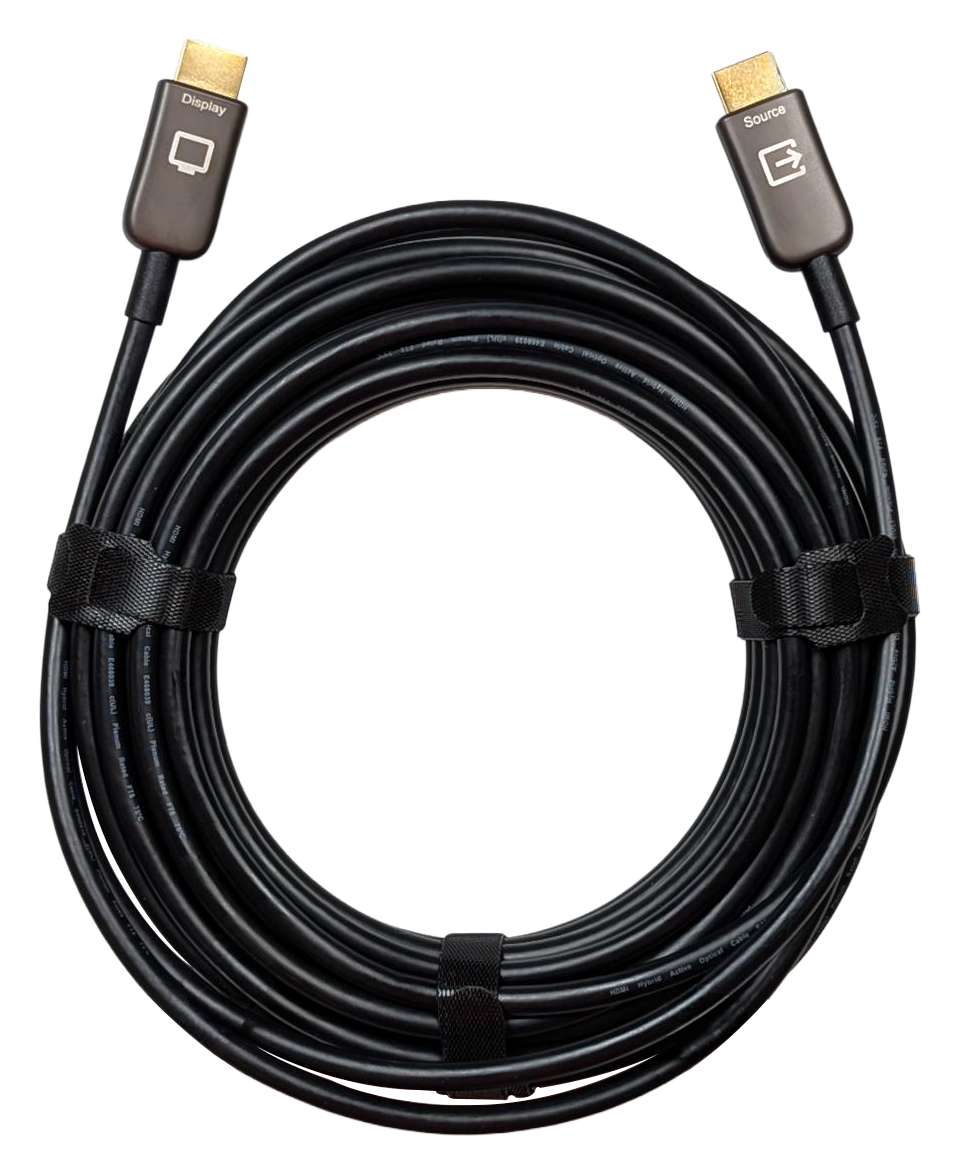

HDMI cable

The HD-1021AOC is a 33' (10 m), active optical cable that carries uncompressed HDMI 2.1 video and audio over optical fiber. It supports resolutions up to 8K at 60 Hz and a maximum bandwidth of 48 Gbps. Featuring a plenum-rated jacket suitable for in-wall and in-ceiling installations, the cable is bus-powered from the connected source and requires no external power supply.

This Ultra High Speed HDMI Cable is certified under the Ultra HDMI™ Cable Certification Program. It has been tested and certified by SMART to work with all SMART interactive displays that have an HDMI connector.

Note

The HD-1021AOC is a directional cable. Connect the Source end to your playback device and the Display end to your screen. Reversing the connection will result in no signal.

HDMI version

HDMI 2.1

HDCP version

HDCP 2.3

Max bandwidth

48 Gbps

Video support

  • Up to 8K @60 Hz
  • 4K @ 144 Hz
  • 1080p@ 240 Hz

HDR support

  • DCI
  • Static HDR, HDR10+
  • Dolby Vision
  • HLG
  • SL-HDR1
  • PQ
  • BT.2020
  • BT.2100

Supported features

  • EDID
  • CEC
  • ALLM
  • VRR
  • DSC
  • ARC
  • eARC

Audio compliance

  • 2-channel PCM
  • Multichannel LPCM up to 192 kHz / 32 channels
  • DTS-X
  • Dolby Atmos

Cable type

Active optical, hybrid fiber and copper conductors

Directionality

Yes, source end to display end

Jacket

CMP (plenum rated)

Connectors

  • HDMI Type-A male (19-pin), both ends
  • Die-cast zinc alloy
  • 24-carat gold-plated contacts

Compatibility

  • SMART Board interactive displays with an HDMI 2.1 connector
  • Backward compatible with HDMI 2.0 and earlier

Power supply

  • Bus-powered
  • 4.5V–5.5V VCC from connected source

Power consumption

25 mW max

External power

Not required

Operating temperature

32°F–140°F (0°C–60°C)

Storage temperature

-4°F–158°F (-20°C–70°C)

Relative humidity

5%–90%

Certification

Ultra High Speed HDMI Cable Certification (HDMI LA)

US / Canada

  • FCC
  • ISED
  • TSCA
  • CONEG Packaging
  • Proposition 65

EU / EEA / EFTA / UK

  • CE
  • UKCA
  • REACH
  • RoHS
  • WEEE
  • POP
  • PPWR

Australia / New Zealand

  • RCM

HD-1021AOC

Cable, HDMI 2.1 M-M, ultra high speed certified, 48 Gbps, eARC, 8K60, 33' (10 m), AOC, plenum rated

SMART limited equipment warranty

1 year

Terms and conditions and warranty upgrade options vary by region. Visit smarttech.com/warranty or contact your reseller for information.

Length

33' (10 m)

Outer diameter

1/4" (6 mm ± 0.2 mm)

Bend radius

2 3/8" (60 mm)

Weight

1 lb. 2 oz (522 g)

Shipping dimensions

8 7/8" × 8 7/8" × 1 1/2" (225 mm × 224 mm × 39 mm)

Shipping weight

1 lb. 6 oz (630 g)
